ZJB postrojenje za filtriranje transformatorskog ulja može brzo i efikasno degazirati, odvodnjavati, uklanjajući nečistoće štetnog ulja. Poboljšava vrijednost naponskog ventila i osigurava siguran rad električne opreme. Elektrana i rudnik uglavnom koriste mašinu za rad sa uljem za međusobne induktore transformatorskog ulja, uljem za prekidače i tako dalje.
Parametar mašine:
|
ITEM |
JEDINICA |
ZJB-10 |
ZJB -20 |
ZJB -30 |
ZJB -50 |
ZJB -75 |
ZJB -100 |
ZJB -150 |
ZJB -200 |
ZJB -300 |
|||||||||||
|
Flow Rate |
L/H |
600 |
1,200 |
1,800 |
3,000 |
4,500 |
6,000 |
9,000 |
12,000 |
18,000 |
|||||||||||
|
Vacuum Range |
MPa |
-0.065----0.098 |
|||||||||||||||||||
|
Radni pritisak |
MPa |
<> |
|||||||||||||||||||
|
Temperaturni opseg |
C |
45-80 |
|||||||||||||||||||
|
Napajanje |
V |
-20Hz 380V (ili po potrebi) |
|||||||||||||||||||
|
Working Noise |
dB |
<> |
|||||||||||||||||||
|
Sadržaj vode |
PPm |
<=5 after=""> |
|||||||||||||||||||
|
Gas Content |
posto |
<=0.1 after=""> |
|||||||||||||||||||
|
Veličina nečistoća |
um |
<=5 after=""> |
|||||||||||||||||||
|
Breakdown Voltage |
Kv |
65KV nakon tretmana |
|||||||||||||||||||
|
Heating Power |
Kw |
9 |
15 |
18 |
30 |
50 |
60 |
80 |
100 |
220 |
|||||||||||
|
Totalna snaga |
Kw |
11 |
17 |
21 |
33 |
54 |
65 |
102 |
125 |
250 |
|||||||||||
|
Ulaz ili izlaz |
Mm |
DN25 |
DN25 |
DN25 |
DN32 |
DN42 |
DN42 |
DN50 |
DN60 |
DN60 |
|||||||||||
|
Neto težina |
Kg |
240 |
260 |
280 |
310 |
850 |
730 |
1150 |
1350 |
1800 |
|||||||||||
|
Veličina (zavisi od robe) |
L |
1500 |
1050 |
1150 |
1200 |
1300 |
1700 |
1600 |
1600 |
2000 |
2200 |
||||||||||
|
W |
1100 |
750 |
800 |
800 |
900 |
1150 |
1200 |
2200 |
1500 |
1500 |
|||||||||||
|
H |
1750 |
1400 |
1450 |
1500 |
1600 |
1800 |
1850 |
2000 |
2200 |
2400 |
|||||||||||
Značajka:
◆To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
◆Enhance the value of breakdown voltage greatly..
◆Easy handling and maintenance.
◆Online work
◆Lower maintenance and replacement expenses.
◆High efficiency and effectiveness.
◆Small size, light weight, low noise
◆Various sizes and configurations (shield) available.
◆Low maintenance and replacement expenses.
◆Low operation cost.
◆High regeneration rate.
◆Automatic reverse-washing system will extend the lifetime of filters and improve the performance of the filters.
◆High performance security system including pressure protection device and automatic temperature controller makes purifier operate safely.
◆Small size, light weight, low noise.
◆The oil purifier use special duplex space solid flash evaporation, can remove the water content and gas rapidly, this system need no maintain.
◆Trash extraction technology composed by reticulation filtration and high macular adsorption, use excellent quality filter, can contain a large amount of waste, encrypt progressive, high precision, more than one degrade purifier.
◆Double infrared ray liquid control automatically, control inlet and outlet the oil smoothly, to achieve man separate with machine really.
◆The oil recycling can be used absolutely and also can used with oil regeneration system, it can deacidification, decoloring, reduce the device, PH value, then enhance the insulation value of oil.
◆This machine can be used in vacuum oiling and vacuum dryness of insulation electrical device.
◆This machine has the ability of vacuum oiling and can electrification operate every degrade of transformer oil.
◆There is trinity interlock and protection device (phase protection, thrashing protection, Over pressure protection)

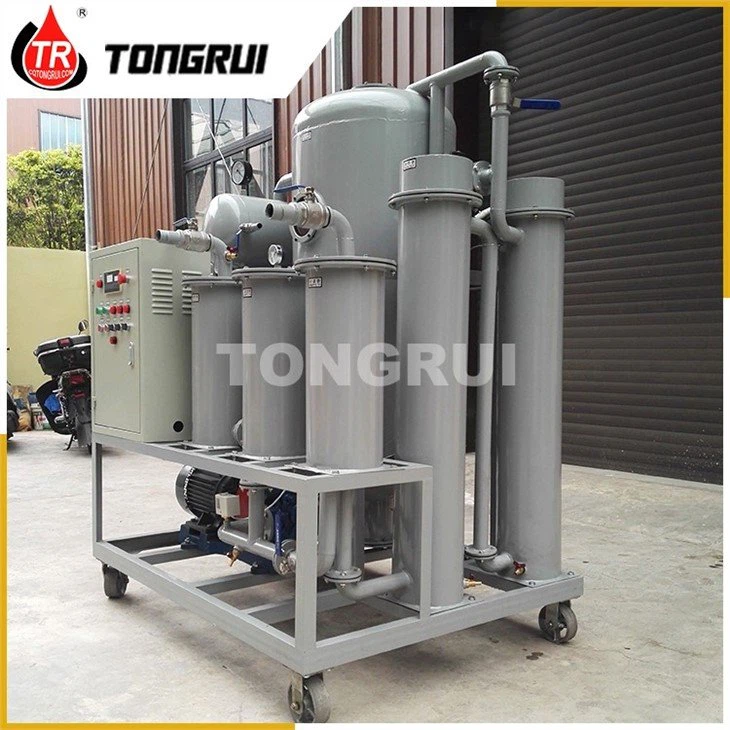

Slike postrojenja za filtriranje transformatorskog ulja:
